Roof Measurements from a 3D Model

Review roof areas, ridges, slopes, and edges on a 3D building model from an address. Keep the dimensions you need for your takeoff and estimate together.

Explore the details
Illustration of building measurements in BotOnPlot

What you can do

What you can do with Building Measurements

01 / 03

Measure on the model

Review roof planes, areas, and physical edge details on the model. Review available roof measurements on the 3D model from a property address. See roof planes and physical edges alongside the structure they belong to, so each dimension has a clear place on the building.

This helps with:

  • Roof areas and slopes
  • Ridges and other physical edges
  • Measurements in building context

Check the geometry in context as you collect the numbers needed for the job.

Building model with measured roof areas and edge lengths labeled directly on the surfaces
02 / 03

Capture useful dimensions

Use available roof measurements to prepare an estimate or material takeoff. Different roof jobs need different dimensions. Review the available roof areas, edge lengths, and slopes that matter to your estimate, with the 3D building model alongside the numbers.

This helps with:

  • Roof area for material planning
  • Physical edges for scope checks
  • Slope and roof shape for context

Focus on useful dimensions rather than collecting figures with no clear purpose.

BotOnPlot 3D viewer with roof measurements and an area breakdown panel
03 / 03

Keep measurements connected

Keep each roof dimension connected to the building you inspected. When everyone works from the same building model, it is easier to check where a roof measurement came from. Return to the model to review the roof before using a dimension in an estimate or exported summary.

This helps with:

  • Review the measured roof location
  • Compare related roof dimensions
  • Carry available measurements into later work

Keep the building and its measurements together through the project.

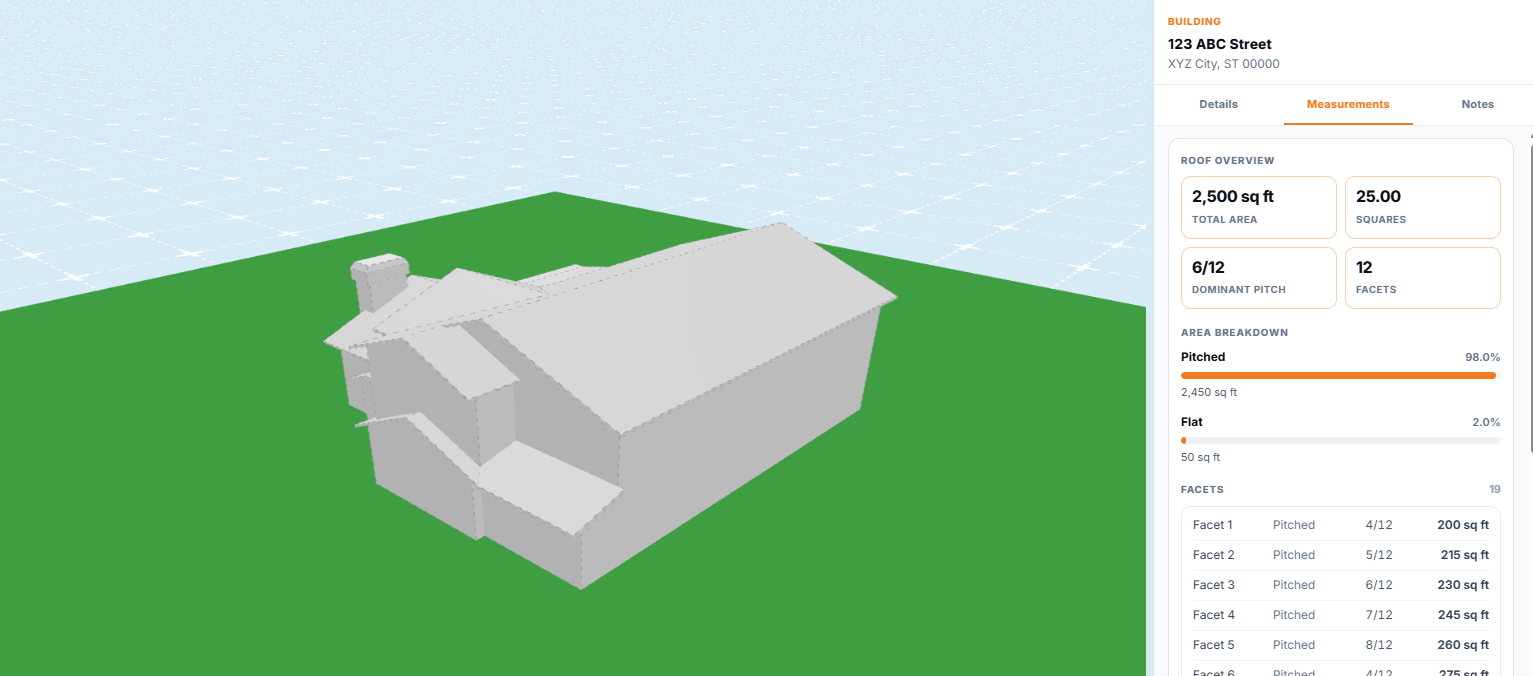

BotOnPlot 3D viewer showing measured roof edges and totals in the measurements sidebar

In practice

Roof measurements with the building in view

Submit a property address and review available roof areas, slopes, ridges, and physical edges on the completed 3D model. Explore the roof, collect the dimensions you need, and prepare your estimate remotely.

Residential roof measurements Commercial roof review Roof measurement FAQ
Explore all features

Start with one address

Your next building model starts with an address.

Get a 3D building model with available roof measurements, delivered within 12 hours on business days.

Get StartedOrders placed on weekends or US holidays are delivered within 12 hours of the next business day starting.
